Key Features

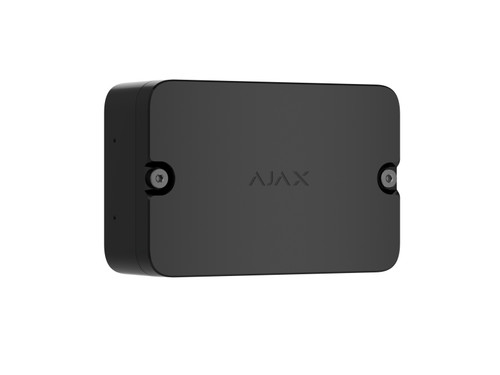

- Wireless addressable EN54 certified I/O integration module with two inputs and two outputs for third‑party device integration (buttons; detectors; control panels; safety equipment)
- Two inputs support various wired connection types (NC; NO; EOL; 2EOL; 3EOL)
- Two galvanically isolated relay outputs with potential‑free dry contacts to control life safety and fire system equipment (e.g.; emergency lighting; door locks)
- Secure two‑way wireless communication with the CIE over the encrypted Jeweller protocol with long open‑space range up to ~1700m
- Powered by pre‑installed batteries; no external power supply required; monitors its operational state and reports faults
- Integrates signals from wired fire; smoke; heat; and CO detectors; manual call points; flow switches; magnetic contacts; HVAC and other third‑party sensors
- Outputs control devices such as automatic gates; locking mechanisms; emergency and evacuation lighting; and other relay‑controllable equipment
- Tamper protection detects removal from SmartBracket mounting and reports to the system
- Addressable device that sends event notifications (input alarms; relay actions; faults; communication loss) to the CIE and monitoring stations
- Cable routing options from the back; side; top; or bottom of the enclosure to suit various installation conditions
